Main Parameters

Please be note all the parameters below are just for reference. We provide easy & flexible customized service. Learn OEM Solution.

Additional information

Rated Voltage


Max Head


Max Flow


Inlet Diameter

Outlet Diameter


Liquid Temperature


■ Parameter

Model Rated Voltage(VDC) Opearting Voltage(VDC) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
VP40H-1280 12.0 8.0-20.0 8.00 10.00 17.00 ≤39.8
VP40H-24130 24.0 10.0-30.0 13.00 12.00 31.2 ≤39.9
VP40H-24150 24.0 10.0-30.0 15.00 13.00 39.0 ≤40.0

■ Specifications

1 Impeller Type Open impeller
2 Food Grade(Y/N) N
3 Working Fluid Temperature 0°-80.0°C
4 Pump Theory Centrifugal motor pump
5 Driving Motor Type Brushless dc motor
6 Ambient Temperature -25.0°-80.0°C
7 Working Medium Pure Water,coolant
8 Waterproof Class IP68
9 Working Voltage Range 8V-20.0V, 10V-30.0V
10 Power Consumption 17.0W, 31.20W, 39.0W
11 Noise Class form 1M distance <40.0dB /(A)
12 Working Mode Continuous
13 Working life >30,000 Hours
14 OD of Inlet 18mm
15 OD of Outlet 9.8mm
16 Product Dimension 82.45mmx48.0mmx67.6mm
17 Product Weight 0.240kg
18 Power Supply DC power supply, battery, solar powered
19 Remarks Not a self-priming pump

■ Graph & Dimension

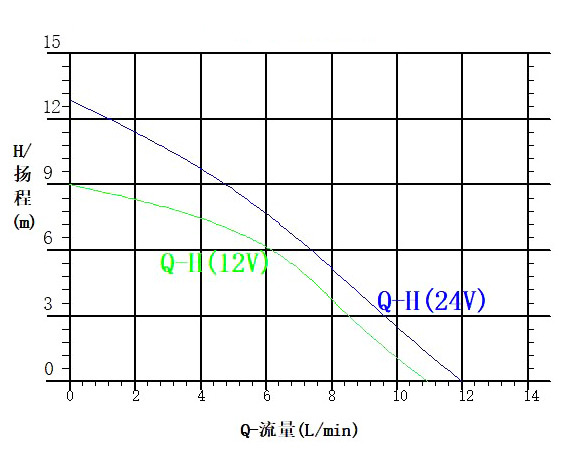

vp40h curve

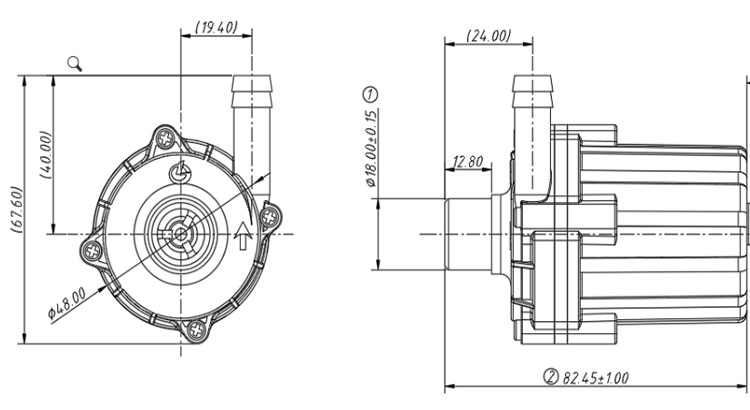

vp40h dimension
