Main Parameters

Please be note all the parameters below are just for reference. We provide easy & flexible customized service. Learn OEM Solution.

Additional information

Rated Voltage


Max Head


Max Flow


Inlet Diameter

Outlet Diameter


Liquid Temperature


■ Parameter

Model Rated Voltage(VDC) Opearting Voltage(VDC) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
VP35C-1215 12.0 6.0-12.0 1.50 4.50 3.29 ≤29.7
VP35C-2430 24.0 12.0-29.8 3.00 7.00 8.40 ≤30.00

■ Specifications

1 Impeller Type Open impeller
2 Food Grade(Y/N) N
3 Working Fluid Temperature -25°-100.0°C
4 Pump Theory Centrifugal motor pump
5 Driving Motor Type Bldc motor
6 Ambient Temperature -25°-70.0°C
7 Working Medium Pure Water,coolant
8 Waterproof Class IP68
9 Working Voltage Range 6.0V-20.0V,12V-29.8V
10 Power Consumption 3.29W,8.40W
11 Noise Class form 1M distance <29.8dB /(A)
12 Working Mode Continuous
13 Working life >30,000 Hours
14 OD of Inlet 13.19 mm
15 OD of Outlet 8.80 mm
16 Product Dimension 74.0*56.0*35.0mm
17 Product Weight 0.11kg
18 Power Supply DC power supply, battery, solar powered
19 Remarks Not a self-priming pump

■ Graph & Dimension

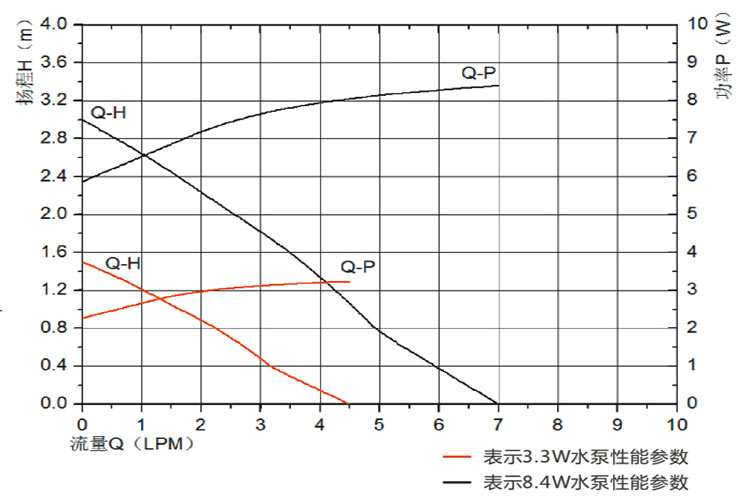

vp35c head flow curve

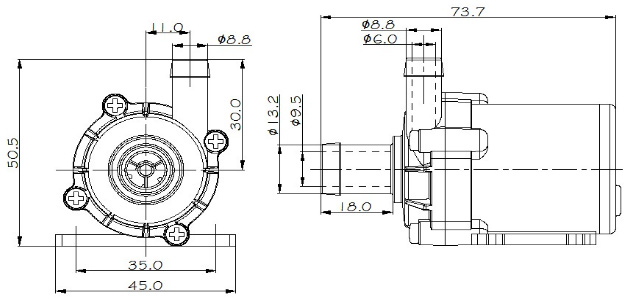

vp35c dimension
