■ Parameter
| Model | Rated Voltage(VDC) | Opearting Voltage(VDC) | Max Head(M) | Max Flow(L/Min) | Power(W) | Noise(dB) |
| VP40S-1290 | 12.0 | 8.1-20.1 | 9.00 | 10.01 | 18.01 | ≤39.5 |
| VP40S-24130 | 24.0 | 8.0-30.0 | 13.00 | 12.00 | 32 | ≤39.6 |
| VP40S-24150 | 24.0 | 8.0-30.0 | 15.00 | 13.01 | 39.1 | ≤40.1 |
■ Specifications
| 1 | Impeller Type | Open impeller |
| 2 | Food Grade(Y/N) | N |
| 3 | Working Fluid Temperature | 0°-80.5°C |
| 4 | Pump Theory | Centrifugal motor pump |
| 5 | Driving Motor Type | Brushless motor |
| 6 | Ambient Temperature | -25.5°-80.5°C |
| 7 | Working Medium | Pure Water,coolant |
| 8 | Waterproof Class | IP68 |
| 9 | Working Voltage Range | 8.1V-20.01V, 8.0V-30.0V |
| 10 | Power Consumption | 18.0W, 32.0W, 39.1W |
| 11 | Noise Class form 1M distance | <40.1dB /(A) |
| 12 | Working Mode | Continuous |
| 13 | Working life | >30,000 Hours | 14 | OD of Inlet | Φ20.00mm (1/2″ thread) |
| 15 | OD of Outlet | Φ20.00mm (1/2″ thread) |

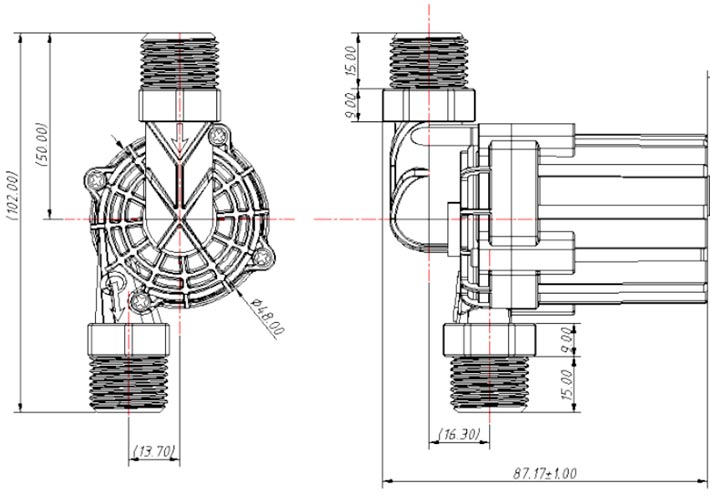

| 16 | Product Dimension | 87.17mmx102.0mmx48.0mm |
| 17 | Product Weight | 0.252kg |
| 18 | Power Supply | DC power supply, battery, solar powered |
| 19 | Remarks | Not a self-priming pump |
