■ Parameter
| Model | Rated Voltage(VDC) | Opearting Voltage(VDC) | Max Head(M) | Max Flow(L/Min) | Power(W) | Noise(dB) |
| VP50A-1250 | 12.0 | 6.0-14.0 | 5.00 | 30.00 | 42.00 | ≤35.0 |
| VP50A-1280 | 12.0 | 6.0-14.0 | 8.00 | 20.00 | 42.00 | ≤36.0 |
| VP50A-24100 | 24.0 | 10.0-30.0 | 10.00 | 41.70 | 85.00 | ≤55.0 |
| VP50A-24150 | 24.0 | 10.0-30.0 | 15.00 | 25.00 | 84.99 | ≤54.9 |
■ Specifications
| 1 | Impeller Type | Open impeller |
| 2 | Food Grade(Y/N) | N |
| 3 | Working Fluid Temperature | -25-60.0°,-25-100.0°C |
| 4 | Pump Theory | Centrifugal motor pump |
| 5 | Driving Motor Type | BLDC small motor |
| 6 | Ambient Temperature | -25.0-60°,-25.0-100°C |
| 7 | Working Medium | Pure Water,coolant |
| 8 | Waterproof Class | IP68 |
| 9 | Working Voltage Range | 6V-14.0V, 10V-30.0V |
| 10 | Power Consumption | 42.0W, 85.0W |
| 11 | Noise Class form 1M distance | <35.0dB /(A),<55.0dB /(A) |
| 12 | Working Mode | Continuous |
| 13 | Working life | >30,000 Hours | 14 | OD of Inlet | 22mm |
| 15 | OD of Outlet | 22mm |

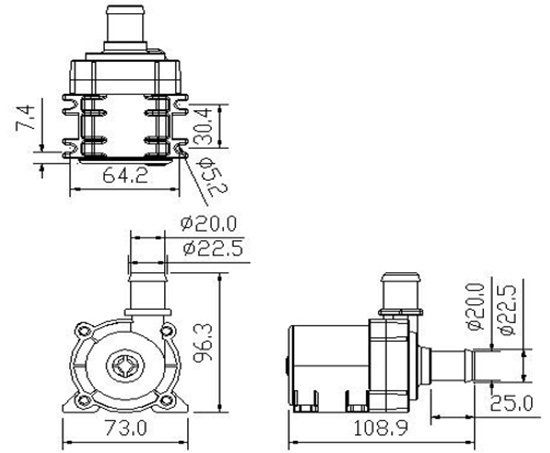

| 16 | Product Dimension | 108mm*64.2mm*96.3mm |
| 17 | Product Weight | 0.650kg |
| 18 | Power Supply | DC power supply, battery, solar powered |
| 19 | Remarks | Not a self-priming pump |
