■ Parameter
| Model | Rated Voltage(VDC) | Opearting Voltage(VDC) | Max Head(M) | Max Flow(L/Min) | Power(W) | Noise(dB) |
| VP50C-1275 | 12.0 | 6.0-14.0 | 7.50 | 25.00 | 42.00 | ≤35.0 |
| VP50A-24100 | 24.0 | 10.0-30.0 | 10.00 | 35.00 | 85.00 | ≤55.0 |
■ Specifications
| 1 | Impeller Type | Open impeller |
| 2 | Food Grade(Y/N) | N |
| 3 | Working Fluid Temperature | 0-60.0°, 0-100.0°C |
| 4 | Pump Theory | Centrifugal motor pump |
| 5 | Driving Motor Type | BLDC small motor |
| 6 | Ambient Temperature | -25-60.0°, -25.0-100.0°C |
| 7 | Working Medium | Pure Water, coolant |
| 8 | Waterproof Class | IP68 |
| 9 | Working Voltage Range | 6V-14.0V, 10V-30.0V |
| 10 | Power Consumption | 42W, 85W |
| 11 | Noise Class form 1M distance | <35.0dB /(A), <55.0dB /(A) |
| 12 | Working Mode | Continuous |
| 13 | Working life | >30,000 Hours | 14 | OD of Inlet | Φ20mm (1/2 inch thread) |
| 15 | OD of Outlet | Φ20mm (1/2 inch thread) |

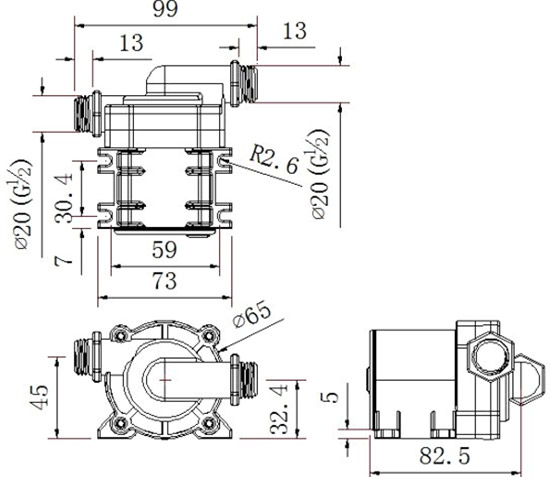

| 16 | Product Dimension | 82.5mm*99mm*70mm |
| 17 | Product Weight | 0.65kg |
| 18 | Power Supply | DC power supply, battery, solar powered |
| 19 | Remarks | Not a self-priming pump |
