Main Parameters

Please be note all the parameters below are just for reference. We provide easy & flexible customized service. Learn OEM Solution.

Additional information

Rated Voltage


Max Head


Max Flow


Inlet Diameter

Outlet Diameter


Liquid Temperature




■ Parameter

Model Rated Voltage(VDC) Opearting Voltage(VDC) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
VP50E-1280 12.0 6.0-14.0 8.00 20.00 43.20 ≤35.00
VP50E-24150 24.0 10.0-30.0 15.00 25.00 86.40 ≤50.0

■ Specifications

1 Impeller Type Open impeller
2 Food Grade(Y/N) N
3 Working Fluid Temperature 0-60.0°,0-100.0°C
4 Pump Theory Centrifugal motor pump
5 Driving Motor Type Brushless small motor
6 Ambient Temperature -25-60.0°,-25.0-100°C
7 Working Medium Pure Water,coolant
8 Waterproof Class IP68
9 Working Voltage Range 6V-14.0V, 10V-24.0V
10 Power Consumption 43.2W, 86.4W
11 Noise Class form 1M distance <35.0dB /(A),<50.0dB /(A)
12 Working Mode Continuous
13 Working life >30,000 Hours
14 OD of Inlet Φ20mm (1/2 inch thread)
15 OD of Outlet Φ20mm (1/2 inch thread)
16 Product Dimension 96.9mm*73mm*84.3mm;
17 Product Weight 0.60kg
18 Power Supply DC power supply, battery, solar powered
19 Remarks Not a self-priming pump

■ Graph & Dimension

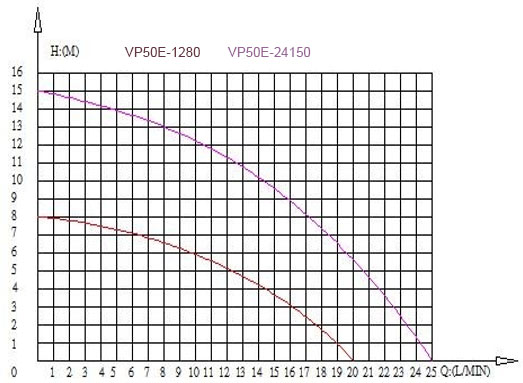

vp50e curve

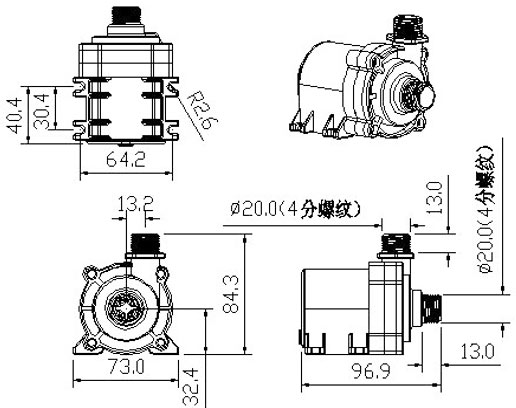

vp50e dimension
