Main Parameters

Please be note all the parameters below are just for reference. We provide easy & flexible customized service. Learn OEM Solution.

Additional information

Rated Voltage


Max Head


Max Flow


Inlet Diameter

Outlet Diameter


Liquid Temperature


■ Parameter

Model Rated Voltage(VDC) Opearting Voltage(VDC) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
VP60N-12110 12.0 7.99-20.00 11.00 20.00 36.01 ≤39.93
VP60N-24160 24.0 12.00-30.00 16.00 23.00 65.00 ≤40.00

■ Specifications

1 Impeller Type Closed impeller
2 Food Grade(Y/N) N
3 Working Fluid Temperature -20°-80°C
4 Pump Theory Centrifugal water pump
5 Driving Motor Type Bldc mini motor
6 Ambient Temperature -25.0°-70.0°C
7 Working Medium Pure Water,coolant
8 Waterproof Class IP68
9 Working Voltage Range 7.99V-20.00V, 12.00V-30.00V
10 Power Consumption 36.00W, 65.00W
11 Noise Class form 1M distance <40.01dB /(A)
12 Working Mode Continuous
13 Working life >30,000 Hours
14 OD of Inlet 1/2 inch thread
15 OD of Outlet 1/2 inch thread
16 Product Dimension 92.5x60x108mm
17 Product Weight 0.45kg
18 Power Supply DC power supply, battery
19 Remarks Not a self-priming pump

■ Graph & Dimension

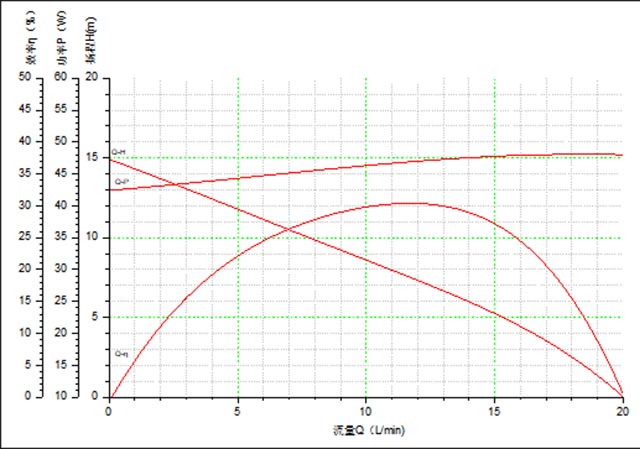

vp60n curve

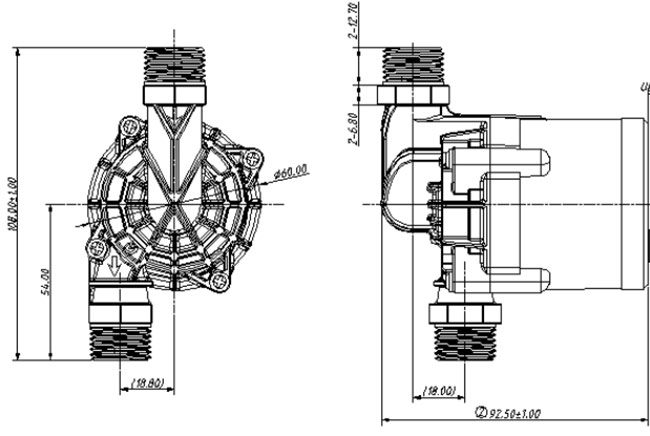

vp60n dimension
