Main Parameters

Please be note all the parameters below are just for reference. We provide easy & flexible customized service. Learn OEM Solution.

Additional information

Rated Voltage


Max Head


Max Flow


Inlet Diameter

Outlet Diameter


Liquid Temperature


■ Parameter

Model Rated Voltage(VDC) Opearting Voltage(VDC) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
VP50N-1230 12.0 8.0-20.0 3.00 25.00 17.00 ≤39.00
VP50N-2430 24.0 10.0-30.0 3.00 25.00 16.99 ≤40.0

■ Specifications

1 Impeller Type Open impeller
2 Food Grade(Y/N) N
3 Working Fluid Temperature -40.0°-125.0°C
4 Pump Theory Centrifugal water pump
5 Driving Motor Type Bldc small motor
6 Ambient Temperature -40.0°-120.0°C
7 Working Medium Pure Water,coolant
8 Waterproof Class IP68
9 Working Voltage Range 7.99V-20.0V, 11.9V-30V
10 Power Consumption 17.00W
11 Noise Class form 1M distance <39.9dB /(A)
12 Working Mode Continuous
13 Working life >30,000 Hours
14 OD of Inlet 20.00mm
15 OD of Outlet 20.00mm
16 Product Dimension 110.30*84.70*48.00mm
17 Product Weight 0.360kg
18 Power Supply DC power supply, battery
19 Remarks Not a self-priming pump

■ Graph & Dimension

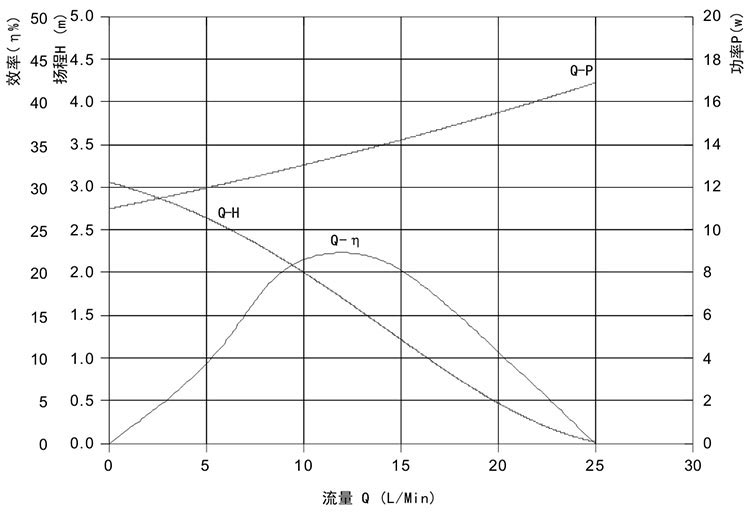

VP50N curve

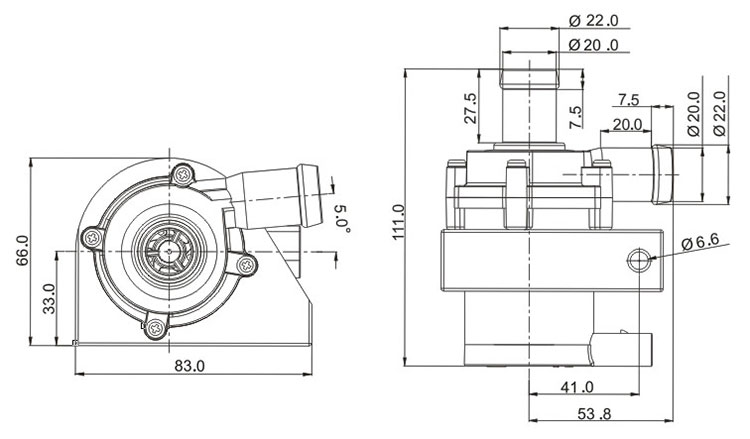

VP50N dimension
