Main Parameters

Please be note all the parameters below are just for reference. We provide easy & flexible customized service. Learn OEM Solution.

Additional information

Rated Voltage

Max Head

7M, 9M

Max Flow

1920L/H, 2100L/H

Inlet Diameter

Outlet Diameter


Liquid Temperature



■ Parameter

Model Rated Voltage(VDC) Opearting Voltage(VDC) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
VP62E-1270 12.0 7.95-20.00 7.00 32.00 37.00 ≤34.98
VP62E-1290 12.0 7.98-20.00 9.00 35.00 55.00 ≤34.99

■ Specifications

1 Impeller Type Closed impeller
2 Food Grade(Y/N) N
3 Working Fluid Temperature -40°-125°C
4 Pump Theory Centrifugal mini pump
5 Driving Motor Type Brushless mini motor
6 Ambient Temperature -40.0°-125.0°C
7 Working Medium Water,Coolant
8 Waterproof Class IP67
9 Working Voltage Range 7.94V-20.0V
10 Power Consumption 37.0, 55.00W
11 Noise Class form 1M distance <35.00dB /(A)
12 Working Mode Continuous
13 Working life >20,000 Hours
14 OD of Inlet 20.00mm
15 OD of Outlet 20.00mm
16 Product Dimension 134*120*80mm
17 Product Weight 0.680kg
18 Power Supply DC power supply, battery
19 Remarks Not a self-priming pump

■ Graph & Dimension

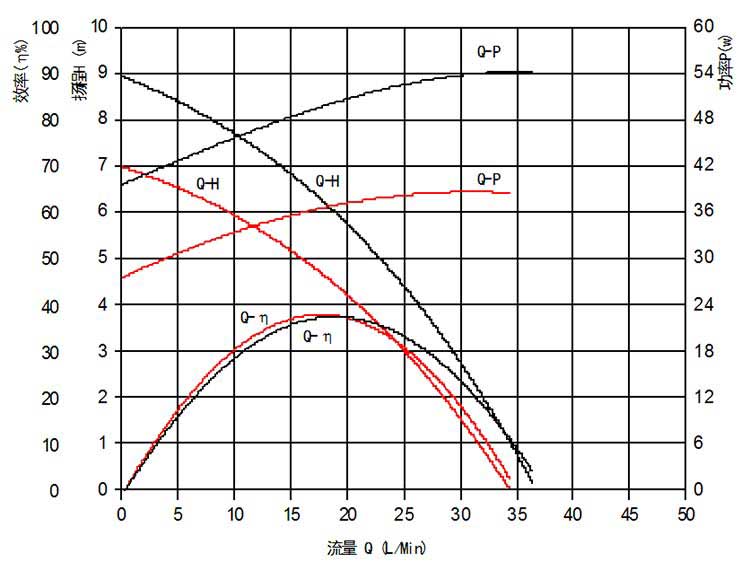

vp62e curve

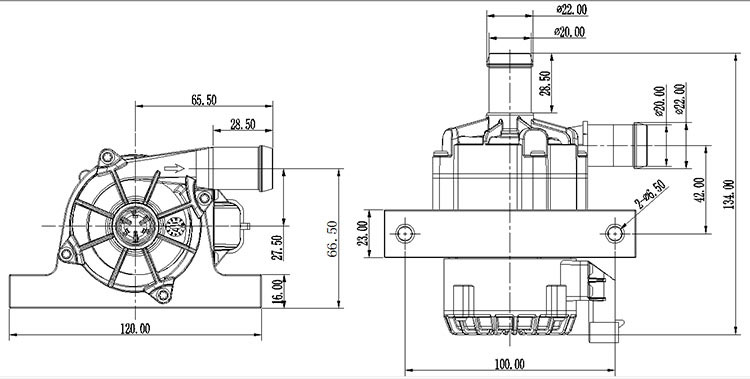

vp62e dimension
