Main Parameters

Please be note all the parameters below are just for reference. We provide easy & flexible customized service. Learn OEM Solution.

Additional information

Rated Voltage


Max Head


Max Flow


Inlet Diameter

Outlet Diameter


Liquid Temperature


■ Parameter

Model Rated Voltage(VDC) Opearting Voltage(VDC) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
VP62A-1290 12.0 7.98-20.01 9.00 30.00 52.00 ≤39.98
VP62A-2490 24.0 11.98-31.99 9.00 30.00 52.00 ≤39.99

■ Specifications

1 Impeller Type Closed impeller
2 Food Grade(Y/N) N
3 Working Fluid Temperature -40.0°-125.0°C
4 Pump Theory Centrifugal DC pump
5 Driving Motor Type Brushless motor
6 Ambient Temperature -40.0°-125.0°C
7 Working Medium Pure Water,Coolant
8 Waterproof Class IP67
9 Working Voltage Range 7.99V-20.1V, 11.99V-31.99V
10 Power Consumption 52.01W
11 Noise Class form 1M distance <39.99dB /(A)
12 Working Mode Continuous
13 Working life >30,000 Hours
14 OD of Inlet 20.00mm
15 OD of Outlet 20.00mm
16 Product Dimension 107.0*112.0*62.0mm
17 Product Weight 0.590kg
18 Power Supply DC power supply, battery
19 Remarks Not a self-priming pump

■ Graph & Dimension

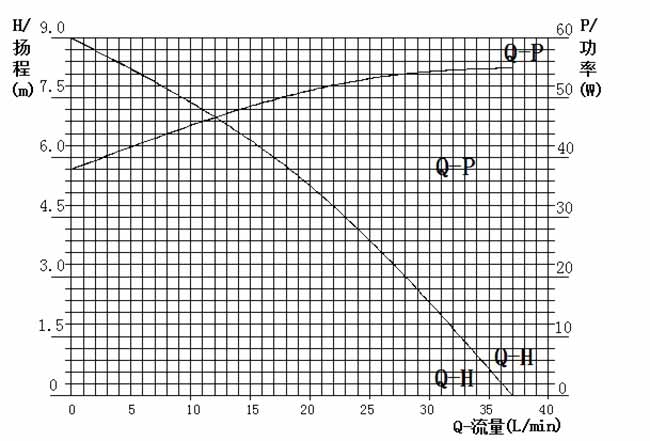

vp62a curve

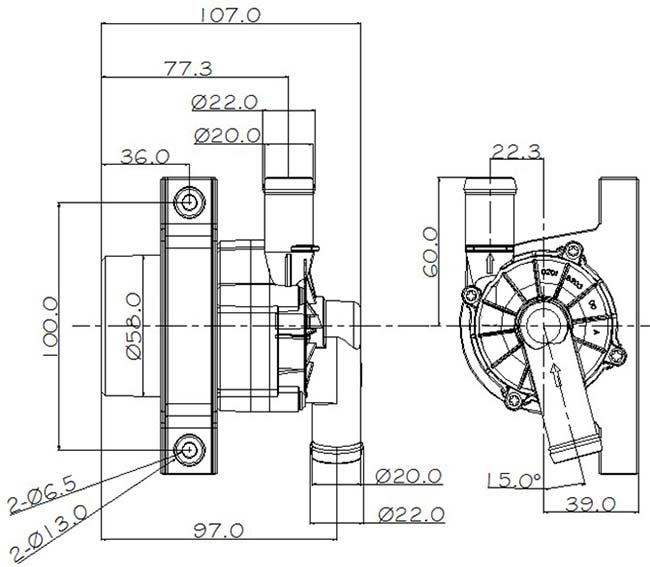

vp62a dimension
