Main Parameters

Please be note all the parameters below are just for reference. We provide easy & flexible customized service. Learn OEM Solution.

Additional information

Rated Voltage


Max Head


Max Flow


Inlet Diameter

Outlet Diameter


Liquid Temperature


■ Parameter

Model Rated Voltage(VDC) Opearting Voltage(VDC) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
VP60B-1280 12.0 8.00-20.00 8.00 17.00 36.00 ≤45.00
VP60B-24110 24.0 12.00-30.00 11.00 20.00 53.00 ≤45.01
VP60B-24120 24.0 12.00-30.00 12.00 21.00 62.00 ≤45.00

■ Specifications

1 Impeller Type Closed impeller
2 Food Grade(Y/N) N
3 Working Fluid Temperature 0°-100°C
4 Pump Theory Centrifugal dc pump
5 Driving Motor Type Bldc mini motor
6 Ambient Temperature -25.0°-70.0°C
7 Working Medium Pure Water,coolant
8 Waterproof Class IP68
9 Working Voltage Range 7.98V-20.0V, 11.99V-30.0V
10 Power Consumption 36.00W, 53.00W, 62.00W
11 Noise Class form 1M distance <40.0dB /(A), <45.0dB /(A).
12 Working Mode Continuous
13 Working life >30,000 Hours
14 OD of Inlet 1/2 inch thread
15 OD of Outlet 1/2 inch thread
16 Product Dimension 92.5mm*60mm*108mm
17 Product Weight 0.450kg
18 Power Supply DC power supply, battery
19 Remarks Not a self-priming pump

■ Graph & Dimension

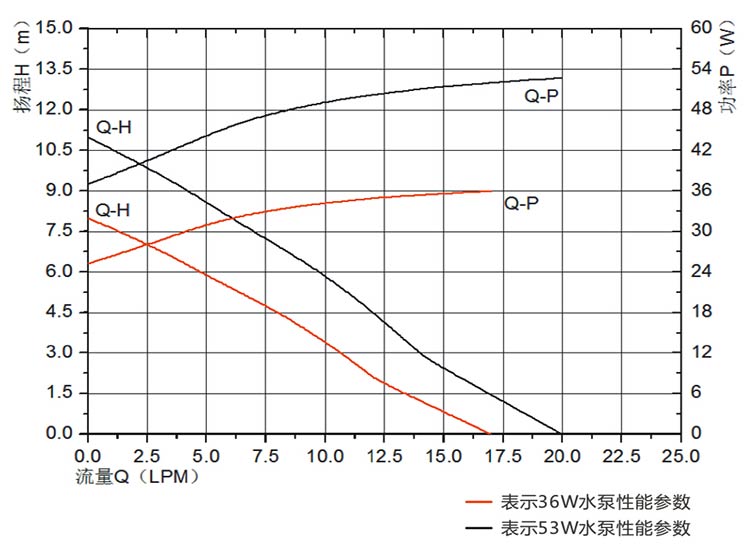

vp60b curve

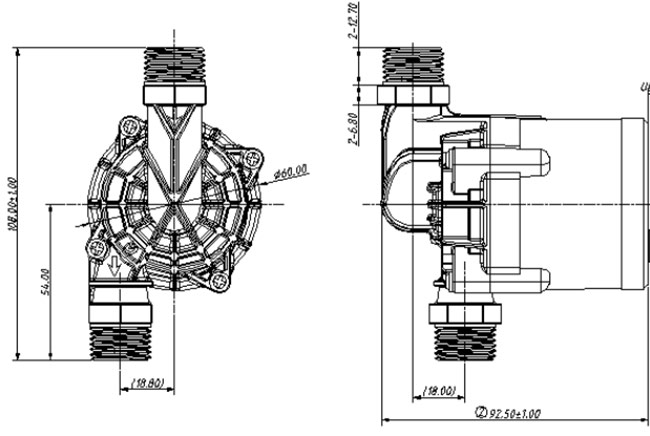

vp60b dimension
