Main Parameters

Please be note all the parameters below are just for reference. We provide easy & flexible customized service. Learn OEM Solution.

Additional information

Rated Voltage


Max Head


Max Flow


Inlet Diameter

Outlet Diameter


Liquid Temperature


■ Parameter

Model Rated Voltage(VDC) Opearting Voltage(VDC) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
VP60F-12180 12.0 8.00-20.00 18.00 14.00 72.00 ≤54.90
VP60F-24270 24.0 12.00-30.00 27.00 19.00 108.00 ≤55.01

■ Specifications

1 Impeller Type Open impeller
2 Food Grade(Y/N) N
3 Working Fluid Temperature 0°-100.0°C
4 Pump Theory Centrifugal dc pump
5 Driving Motor Type Bldc mini motor
6 Ambient Temperature -25.0°-70.0°C
7 Working Medium Pure Water,coolant
8 Waterproof Class IP68
9 Working Voltage Range 7.97V-20.0V, 11.95V-30.0V
10 Power Consumption 72.00W, 108.00W
11 Noise Class form 1M distance <55.0dB /(A)
12 Working Mode Continuous
13 Working life >30,000 Hours
14 OD of Inlet 1/4 inch thread
15 OD of Outlet 1/4 inch thread
16 Product Dimension 156mm*97.6mm*75mm
17 Product Weight 0.860kg
18 Power Supply DC power supply, battery
19 Remarks Not a self-priming pump

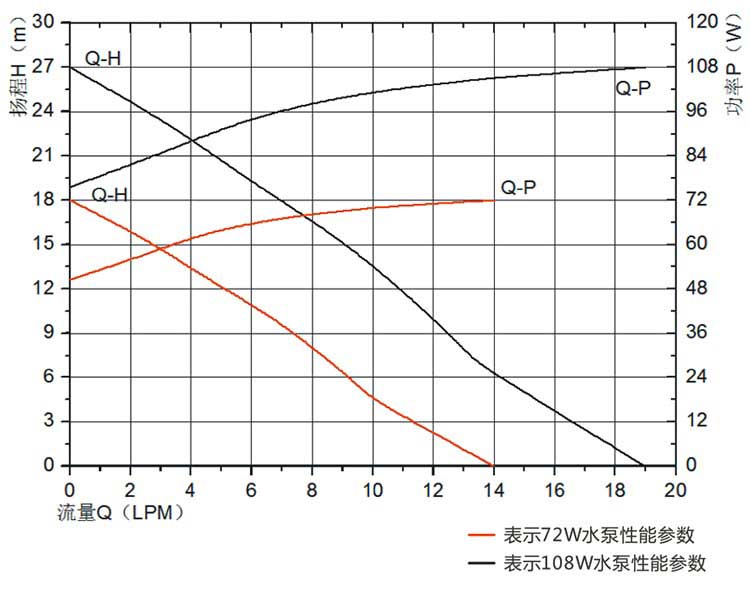

■ Graph & Dimension

vp60f curve
