Main Parameters

Please be note all the parameters below are just for reference. We provide easy & flexible customized service. Learn OEM Solution.

Additional information

Rated Voltage


Max Head


Max Flow


Inlet Diameter

Outlet Diameter


Liquid Temperature


■ Parameter

Model Rated Voltage(VDC) Opearting Voltage(VDC) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
VP80B-1290 12.0 7.95-20.00 9.01 41.01 71.99 ≤48.01
VP80B-2490 24.0 12.01-31.99 9.00 41.01 72.00 ≤48.02

■ Specifications

1 Impeller Type Closed impeller
2 Food Grade(Y/N) N
3 Working Fluid Temperature -40°-125°C
4 Pump Theory Centrifugal water pump
5 Driving Motor Type Brushless small motor
6 Ambient Temperature -40.0°-125.0°C
7 Working Medium Water,Coolant
8 Waterproof Class IP67
9 Working Voltage Range 7.99-20.1V, 12.1-32.1V
10 Power Consumption 72.00W
11 Noise Class form 1M distance <48.01dB /(A)
12 Working Mode Continuous
13 Working life >20,000 Hours
14 OD of Inlet 20.00mm
15 OD of Outlet 20.00mm
16 Product Dimension 118.3*103*118 mm
17 Product Weight 0.710kg
18 Power Supply DC power supply, battery
19 Remarks Not a self-priming pump

■ Graph & Dimension

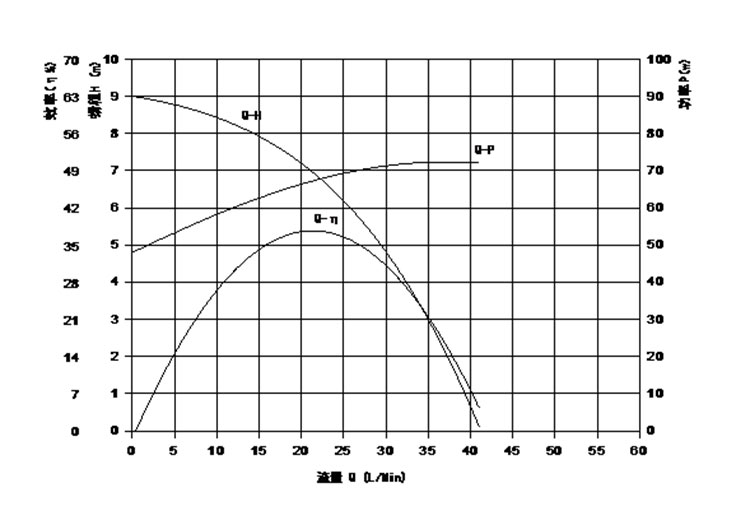

vp80b curve

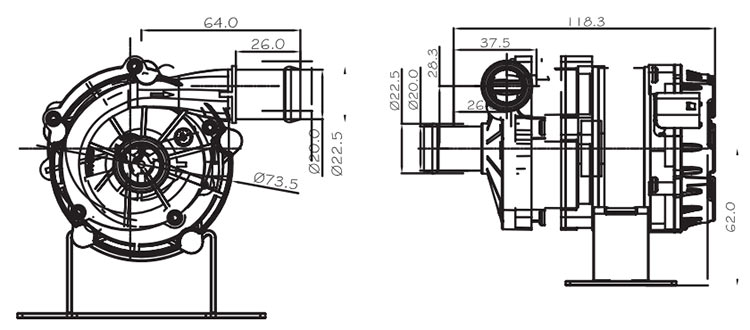

vp80b dimension
