Main Parameters

Please be note all the parameters below are just for reference. We provide easy & flexible customized service. Learn OEM Solution.

Additional information

Rated Voltage

Max Head

24M, 25M

Max Flow

6000L/H, 6600L/H

Inlet Diameter

Outlet Diameter


Liquid Temperature


■ Parameter

Model Rated Voltage(VDC) Opearting Voltage(VDC) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
VP90A-24240 24.0 12.00-32.00 24.01 100.01 252.01 ≤59.99
VP90A-24250 24.0 11.99-32.01 25.00 110.00 288.00 ≤60.01

■ Specifications

1 Impeller Type Closed impeller
2 Food Grade(Y/N) N
3 Working Fluid Temperature -40°-125°C
4 Pump Theory Centrifugal coolant pump
5 Driving Motor Type Brushless mini motor
6 Ambient Temperature -40.0°-125.0°C
7 Working Medium Water,Coolant,fuel
8 Waterproof Class IP67
9 Working Voltage Range 12.0-30.0V
10 Power Consumption 252.00, 288.00W
11 Noise Class form 1M distance <60.0dB /(A)
12 Working Mode Continuous
13 Working life >30,000 Hours
15 OD of Outlet 38.00mm
16 Product Dimension 183*103*240mm
17 Product Weight 2.4kg
18 Power Supply DC power supply, battery
19 Remarks Not a self-priming pump

■ Graph & Dimension

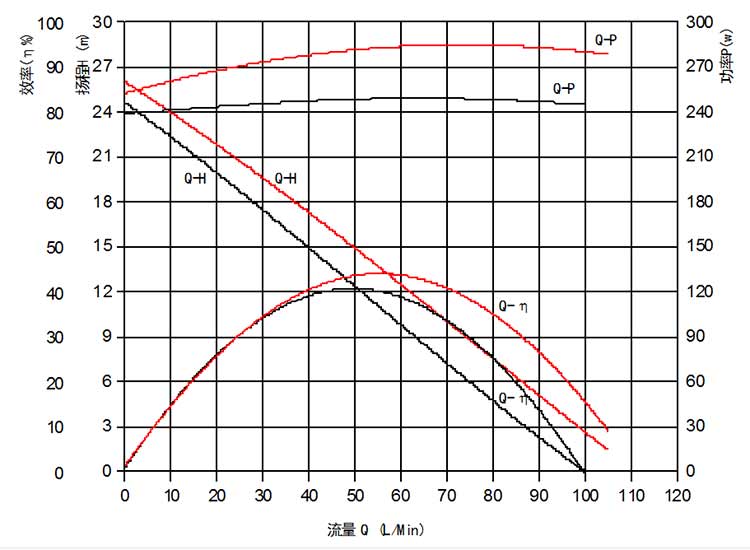

vp90a curve

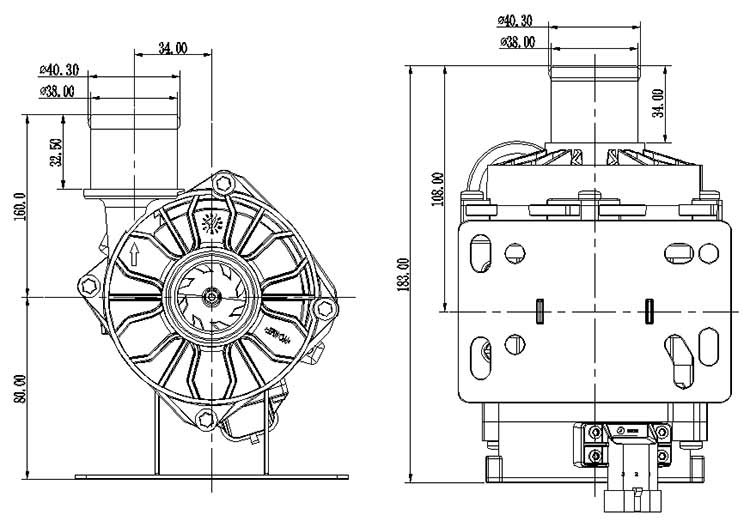

vp90a dimension
