Main Parameters

Please be note all the parameters below are just for reference. We provide easy & flexible customized service. Learn OEM Solution.

Additional information

Rated Voltage


Max Head


Max Flow


Inlet Diameter

Outlet Diameter


Liquid Temperature


■ Parameter

Model Rated Voltage(VDC) Opearting Voltage(VDC) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
VP40F-1230 12.0 4.98-13.98 3.00 13.30 15.59 ≤39.6
VP40F-2450 24.0 9.5-26.0 5.00 16.60 28.78 ≤40.0

■ Specifications

1 Impeller Type Open impeller
2 Food Grade(Y/N) N
3 Working Fluid Temperature -10°-60.0°C
4 Pump Theory Centrifugal motor pump
5 Driving Motor Type Brushless dc motor
6 Ambient Temperature -10.0°-60.0°C
7 Working Medium Pure Water,coolant
8 Waterproof Class IP68
9 Working Voltage Range 4.8V-14.0V,9.98V-26.0V
10 Power Consumption 15.60W,28.80W
11 Noise Class form 1M distance <39.9dB /(A)
12 Working Mode Continuous
13 Working life >30,000 Hours
14 OD of Inlet Φ20.0mm (1/2″ thread)
15 OD of Outlet Φ20.0mm (1/2″ thread)
16 Product Dimension 76.5mm*46.4mm*47.4mm
17 Product Weight 0.270kg
18 Power Supply DC power supply, battery, solar powered
19 Remarks Not a self-priming pump

■ Graph & Dimension

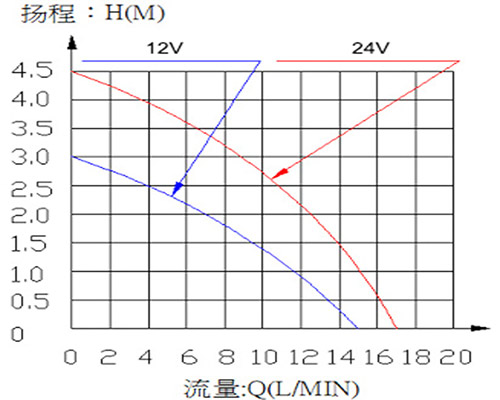

vp40f brushless dc pump curve

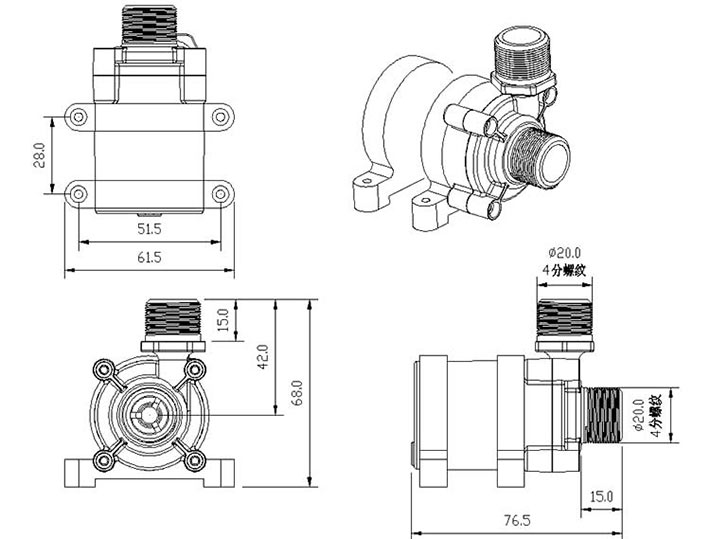

VP40F dimensions

Does this product not meet your needs? Go back to the Product Page to choose again, or send us an email for getting a recommendation of a pump that would work best for your needs.
