Main Parameters

Please be note all the parameters below are just for reference. We provide easy & flexible customized service. Learn OEM Solution.

Additional information

Rated Voltage


Max Head


Max Flow


Inlet Diameter

Outlet Diameter


Liquid Temperature


■ Parameter

Model Rated Voltage(VDC) Opearting Voltage(VDC) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
VP25A-0310 3 3-4 1 0.9 0.22 ≤28
VP25A-0610 6 3-6 1 1.3 0.89 ≤29
VP25A-1220 12 4-12 2.0 2.0 3.79 ≤30

■ Specifications

14OD of Inlet9.7 mm

1 Impeller Type Closed impeller
2 Food Grade(Y/N) Y
3 Working Fluid Temperature 0°-100°C
4 Pump Theory Centrifugal pump
5 Driving Motor Type Brushless dc motor
6 Ambient Temperature -25°-70°C
7 Working Medium Pure Water
8 Waterproof Class IP68
9 Working Voltage Range 3V-12V
10 Power Consumption 0.22W,0.89W,3.79W
11 Noise Class form 1M distance 30dB /(A)
12 Working Mode Continuous
13 Working life >30,000 Hours
15 OD of Outlet 7.0 mm
16 Product Dimension 35.9*26*36mm
17 Product Weight 0.02 kg
18 Power Supply DC power supply, battery, solar powered
19 Remarks Not a self-priming pump

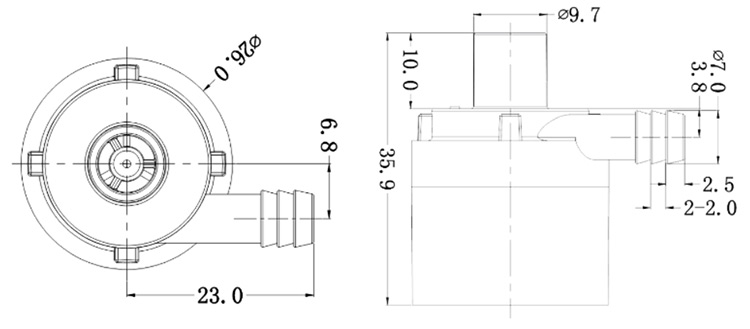

■ Graph & Dimension

vp25a Dimension
