Main Parameters

Please be note all the parameters below are just for reference. We provide easy & flexible customized service. Learn OEM Solution.

Additional information

Rated Voltage


Max Head


Max Flow


Inlet Diameter

Outlet Diameter


Liquid Temperature


■ Parameter

Model Rated Voltage(VDC) Opearting Voltage(VDC) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
VP40-1250 12.0 4.9-13.9 5.0 7.5 14.39 ≤39.9
VP40-2470 24.0 10.0-26.9 7.0 10.0 28.79 ≤39.9

■ Specifications

1 Impeller Type Open impeller
2 Food Grade(Y/N) N
3 Working Fluid Temperature -10.0°-60.0°C
4 Pump Theory Centrifugal dc pump
5 Driving Motor Type Bldc motor
6 Ambient Temperature -11.0°-60.0°C
7 Working Medium Pure Water,coolant
8 Waterproof Class IP68
9 Working Voltage Range 5.0V-14.0V,10.0V-26.0V
10 Power Consumption 14.38W,28.78W
11 Noise Class form 1M distance <39.9dB /(A)
12 Working Mode Continuous
13 Working life >30,000 Hours
14 OD of Inlet 10.0 mm
15 OD of Outlet 10.0 mm
16 Product Dimension 79.50mm*46.40mm*47.20mm
17 Product Weight 0.269kg
18 Power Supply DC power supply, battery, solar powered
19 Remarks Not a self-priming pump

■ Graph & Dimension

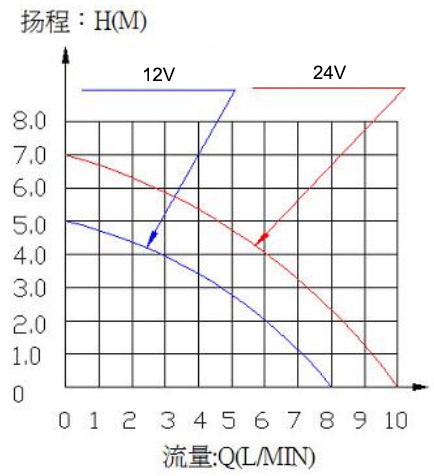

vp40 pump curve

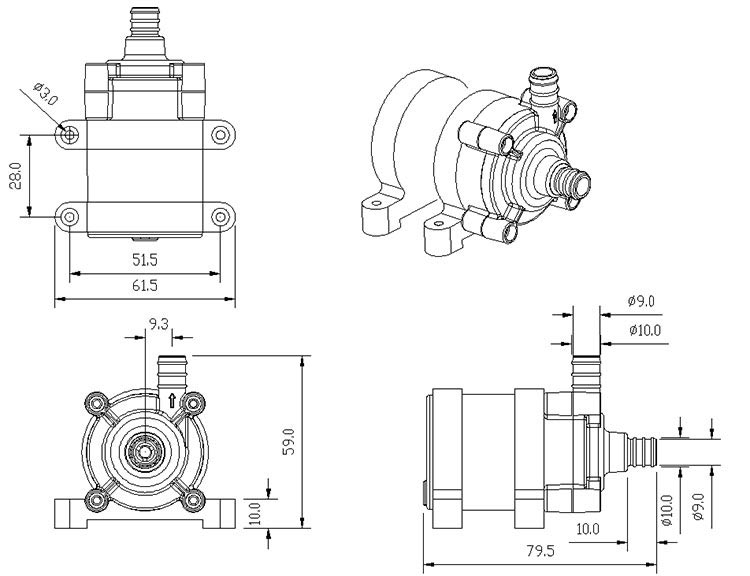

VP40 Pump Dimension
