Main Parameters

Please be note all the parameters below are just for reference. We provide easy & flexible customized service. Learn OEM Solution.

Additional information

Rated Voltage


Max Head


Max Flow


Inlet Diameter

Outlet Diameter


Liquid Temperature


■ Parameter

Model Rated Voltage(VDC) Opearting Voltage(VDC) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
VP30-0507 5.0 4-9 0.70 2.0 0.98 ≤28.0
VP30-1215 12.0 6.0-13.9 1.50 3.40 4.79 ≤29.9

■ Specifications

1 Impeller Type Open impeller
2 Food Grade(Y/N) N
3 Working Fluid Temperature -10°-60°C
4 Pump Theory Centrifugal motor pump
5 Driving Motor Type Bldc motor
6 Ambient Temperature -10.0°-60.0°C
7 Working Medium Pure Water,coolant
8 Waterproof Class IP68
9 Working Voltage Range 5.99V-13.90V
10 Power Consumption 0.99W,4.79W
11 Noise Class form 1M distance <29.9dB /(A)
12 Working Mode Continuous
13 Working life >30,000 Hours
14 OD of Inlet 8.0 mm
15 OD of Outlet 8.0 mm
16 Product Dimension 43.30mm*38.00mm*44.60mm
17 Product Weight 0.07kg
18 Power Supply DC power supply, battery, solar powered
19 Remarks Not a self-priming pump

■ Graph & Dimension

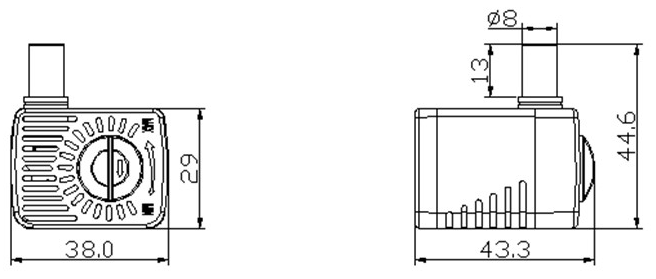

vp30 brushless dc pump dimension

Does this product not meet your needs? Go back to the Product Page to choose again, or send us an email for getting a recommendation of a pump that would work best for your needs.
