Main Parameters

Please be note all the parameters below are just for reference. We provide easy & flexible customized service. Learn OEM Solution.

Additional information

Rated Voltage


Max Head


Max Flow


Inlet Diameter

Outlet Diameter


Liquid Temperature


■ Parameter

Model Rated Voltage(VDC) Opearting Voltage(VDC) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
VP40C-1240 12.0 4.9-14.0 4.00 12.0 15.59 ≤39.5
VP40C-2460 24.0 9.9-26.0 6.00 15.00 28.79 ≤39.9

■ Specifications

1 Impeller Type Open impeller
2 Food Grade(Y/N) N
3 Working Fluid Temperature -10°-60.0°C
4 Pump Theory Centrifugal motor pump
5 Driving Motor Type Brushless dc motor
6 Ambient Temperature -10.0°-60.0°C
7 Working Medium Pure Water,coolant
8 Waterproof Class IP68
9 Working Voltage Range 4.9V-14.0V,9.9V-26.0V
10 Power Consumption 15.59W,28.80W
11 Noise Class form 1M distance <39.8dB /(A)
12 Working Mode Continuous
13 Working life >30,000 Hours
14 OD of Inlet Φ20.0mm (1/2″ thread)
15 OD of Outlet Φ20.0mm (1/2″ thread)
16 Product Dimension 81.0mm*83.0mm*43.8mm
17 Product Weight 0.235kg
18 Power Supply DC power supply, battery, solar powered
19 Remarks Not a self-priming pump

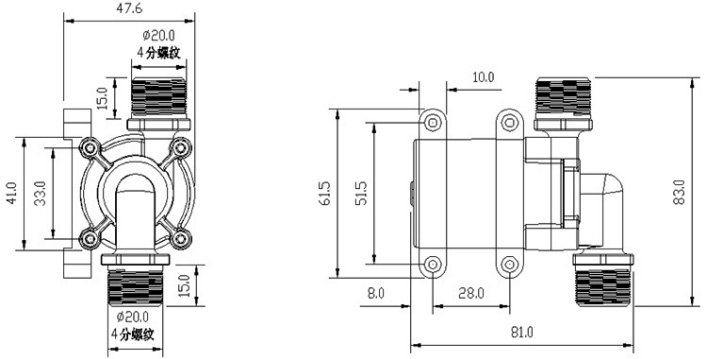

■ Graph & Dimension

vp40c dimension
