| 1 |
Impeller Type |
Closed impeller |
| 2 |
Food Grade(Y/N) |
N |
| 3 |
Working Fluid Temperature |
0°-80°C |
| 4 |
Pump Theory |
Centrifugal water pump |
| 5 |
Driving Motor Type |
Brushless mini motor |
| 6 |
Ambient Temperature |
-25.0°-80.0°C |
| 7 |
Working Medium |
Pure Water,coolant |
| 8 |
Waterproof Class |
IP68 |
| 9 |
Working Voltage Range |
9.97V-20.0V, 11.9V-29.99V |
| 10 |
Power Consumption |
41.00W, 65.02W, 88.02W, 120.02W |
| 11 |
Noise Class form 1M distance |
<40.01dB /(A), 45.01dB /(A) |
| 12 |
Working Mode |
Continuous |
| 13 |
Working life |
>30,000 Hours |
14 |
OD of Inlet |
1/2 inch thread |
| 15 |
OD of Outlet |
1/2 inch thread |
| 16 |

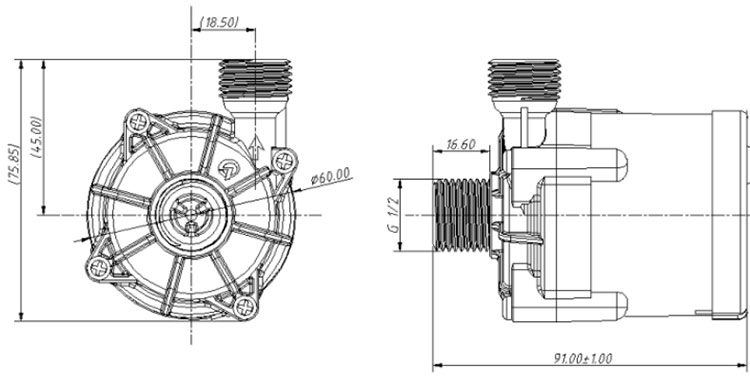

Product Dimension |
91.0x60x83.0mm |
| 17 |
Product Weight |
0.501kg |
| 18 |
Power Supply |
DC power supply, battery |
| 19 |
Remarks |
Not a self-priming pump |
