Main Parameters

Please be note all the parameters below are just for reference. We provide easy & flexible customized service. Learn OEM Solution.

Additional information

Rated Voltage


Max Head

10M, 12M

Max Flow


Inlet Diameter

Outlet Diameter


Liquid Temperature


■ Parameter

Model Rated Voltage(VDC) Opearting Voltage(VDC) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
VP80E-12100 13.5 8.01-20.01 10.00 50.00 81.00 ≤48.00
VP80E-24120 24.0 12.00-32.00 12.00 50.00 108.00 ≤48.02

■ Specifications

1 Impeller Type Closed impeller
2 Food Grade(Y/N) N
3 Working Fluid Temperature -40.00°-125.00°C
4 Pump Theory Centrifugal water pump
5 Driving Motor Type Bldc small motor
6 Ambient Temperature -40.00°-125.00°C
7 Working Medium Water, Coolant, Fuel
8 Waterproof Class IP67
9 Working Voltage Range 8.01-20.0V, 12.0-31.99V
10 Power Consumption 81.0w, 88.00W
11 Noise Class form 1M distance <48.01dB /(A)
12 Working Mode Continuous
13 Working life >20,000 Hours
14 OD of Inlet 20.0mm
15 OD of Outlet 20.0mm
16 Product Dimension 133.4*103*118 mm
17 Product Weight 0.97kg
18 Power Supply DC power supply, battery
19 Remarks Not a self-priming pump

■ Graph & Dimension

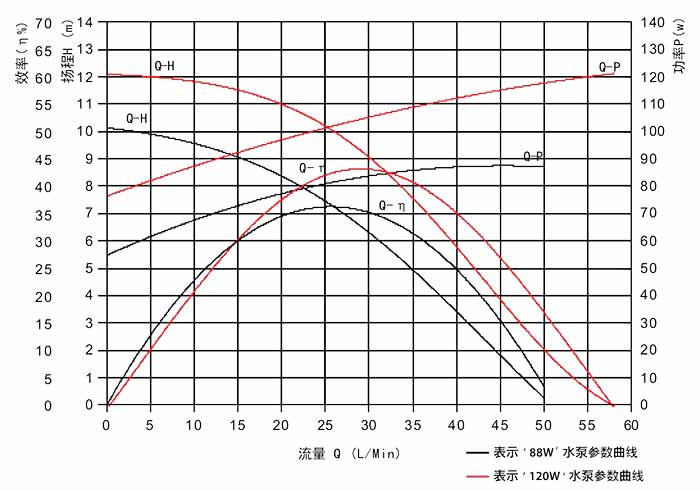

vp80e curve

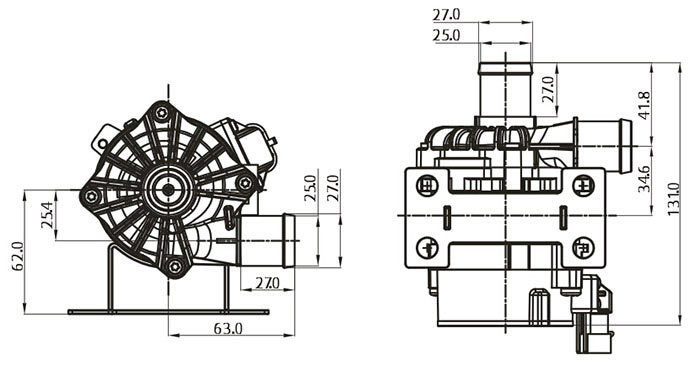

vp80e dimension
