■ Overview

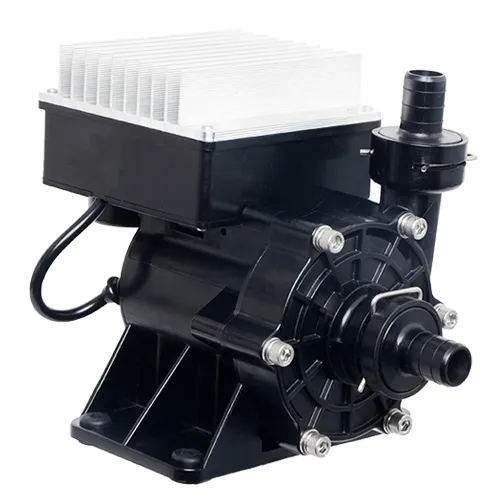

High Pressure Water Pump VP100A is a bldc water pump which built by a bldc motor. Its max water head is 48m, max fow is 100L/min, it can be powered by 220V voltage AC power supply and 24V, 48V voltage DC power supply. Pepole usually use VP100A pump to circulate or lift liquid such water, coolant, oil for various water booster system, thermal management system etc. VP100A pump has a long working life more than 30,000 hours, it has PWM speed adjust function to adjust the its working performance. High Pressure Water Pump VP100A is widely used for home water booster system, agricultural irrigation, ev charging pile, EV Fast Charging Stations, heat pump, etc.
■ Parameter
| Model | Rated Voltage(VDC) | Opearting Voltage(VDC) | Max Head(M) | Max Flow(L/Min) | Power(W) | Noise(dB) |
| VP100A-220380 | 220.0 | 180.0-270.0 | 38.0 | 100.0 | 374.0 | ≤49.99 |
| VP100A-220480 | 220.0 | 180.0-270.0 | 48.0 | 100.0 | 550.0 | ≤50.0 |
■ Specifications
| 1 | Impeller Type | Closed impeller |
| 2 | Food Grade(Y/N) | N |
| 3 | Working Fluid Temperature | -30°-70°C |
| 4 | Pump Theory | Centrifugal pump |
| 5 | Driving Motor Type | Brushless dc motor |
| 6 | Ambient Temperature | -25.0°-80.0°C |
| 7 | Working Medium | Water,Coolant |
| 8 | Waterproof Class | IP67 |
| 9 | Working Voltage Range | 180.00-270.0V |
| 10 | Power Consumption | 374.0W, 550.0W |
| 11 | Noise Class form 1M distance | <50.00dB /(A) |
| 12 | Working Mode | Continuous |
| 13 | Working life | >30,000 Hours | 14 | OD of Inlet | 20.00mm |
| 15 | OD of Outlet | 20.00mm |
| 16 | Product Dimension | 223.4*126.0*178.0mm |
| 17 | Product Weight | 3.2kg |
| 18 | Power Supply | AC Electric supply |
| 19 | Remarks | Not a self-priming pump |
